2-28 Chapter 2: Hardware information

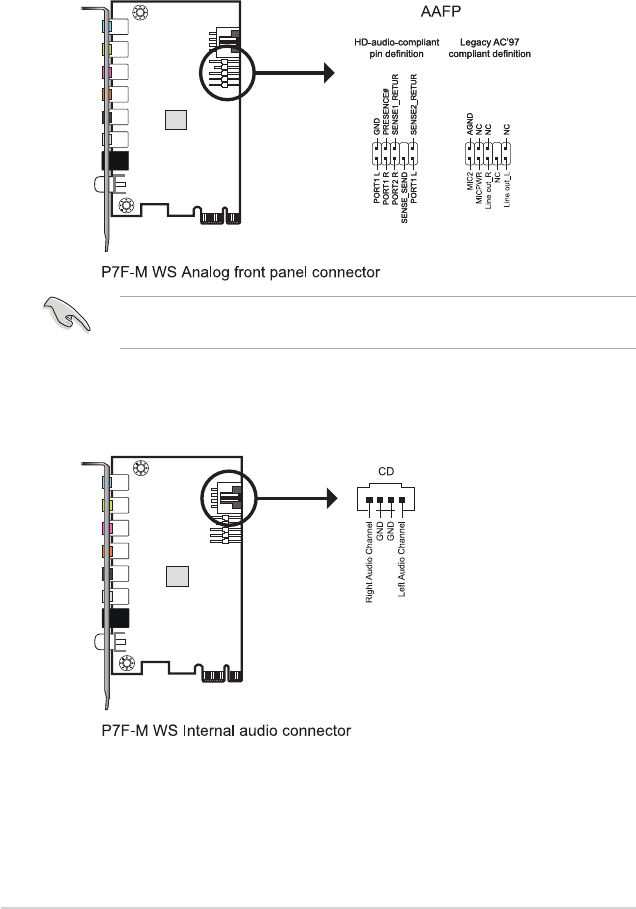

8. Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that

supports either HD Audio or legacy AC`97 audio standard. Connect one end

of the front panel audio I/O module cable to this connector.

We recommend that you connect a high-denition front panel audio module to

this connector to avail of the motherboard’s high-denition audio capability.

9. Optical drive audio connector (4-pin CD)

These connectors allow you to receive stereo audio input from sound sources

such as a CD-ROM, TV tuner, or MPEG card.
